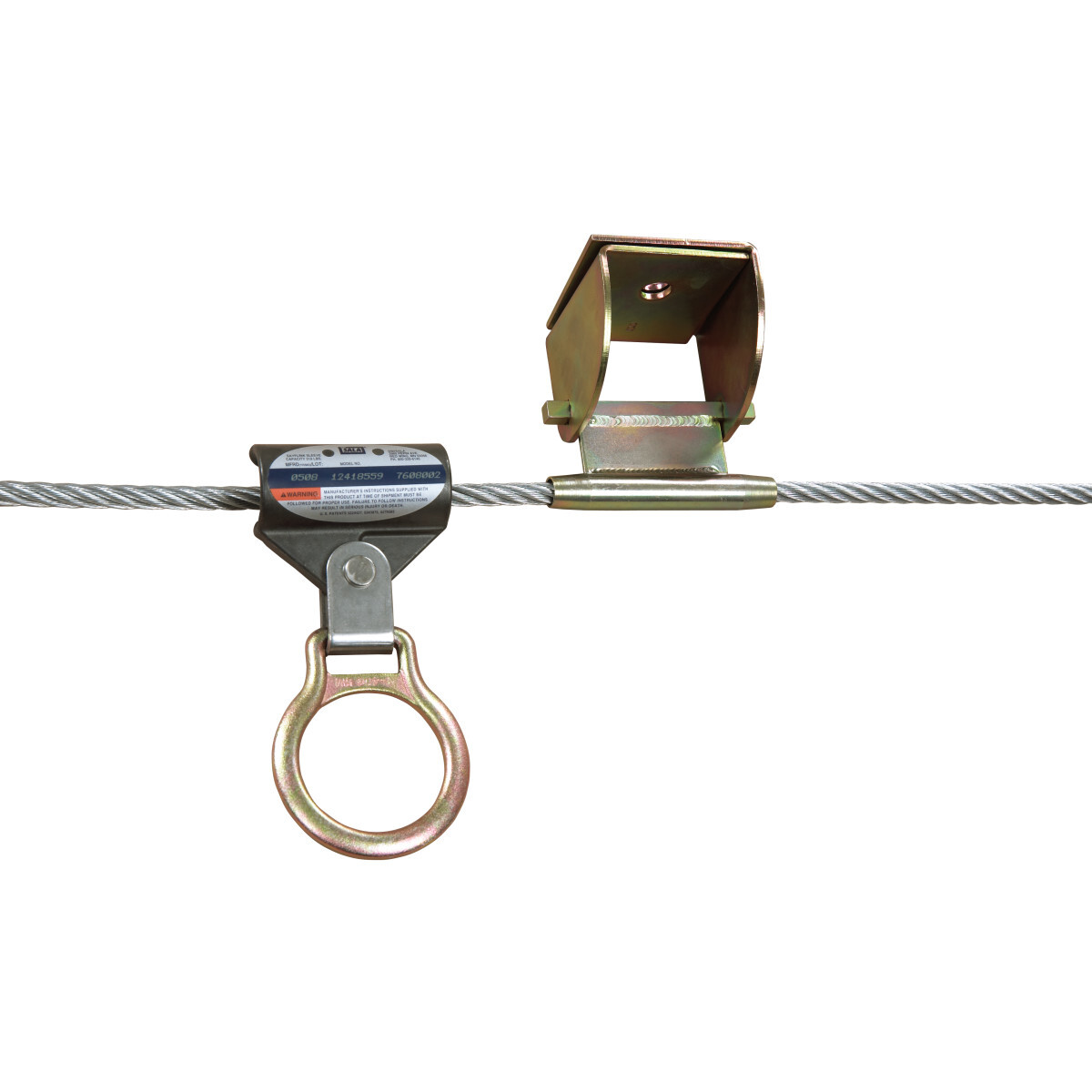

3M DBISALA Sayfline Permanent MultiSpan Horizontal Lifeline System 7603100

Item Details

• 3M™ DBI-SALA® 100' Sayfline™ Multi-Span Cable Horizontal Lifeline System includes 3/8" cable assembly, intermediate bracket, termination hardware, turnbuckle and 2 Zorbit™ energy absorbers. System has by passable intermediates eliminating the requirement of special tools or equipment to install. It offers 100% tie-off for 2 workers and lets you traverse the entire system without disconnecting. System provides additional safety with Zorbit™ shock absorber and allows using a standard 5000 lb rated anchorage connector like fixed beam anchor, D-ring anchorage plate. Flexible system can be customized according to specific jobsite requirements. It allows 180' maximum system length with up to 30' maximum spans. System features 1-piece Sayflink™ sleeve that easily slides over the intermediate brackets without any manipulation required by the user allowing hands-free operation. Affordable system offers safe solution for non-engineered homemade systems and those that requires costly third-party installation. System comes complete with cable lifeline assembly and turnbuckle device to tension for easy use, termination hardware, 1 intermediate per 30' span and 2 Zorbit™ energy absorbers. It meets or exceeds all applicable industry standards including OSHA and ANSI.

Features

• Off-the-shelf permanent multi-span horizontal system designed for user installation
• Rugged 3/8" (9. 5mm) 7x19 galvanized cable lifeline (stainless steel also available): All metal construction provides the ultimate in jobsite durability and the galvanized finish offers corrosion resistance for longer service life
• Pass-thru 100% tie-off protection: The multi-span intermediate provides bypass capabilities for continuous connection, there is no need to disconnect and reconnect offering complete horizontal mobility and 100% protection
• Sayflink™ sleeve provides hands-free operation (order model 7608002 separately)
• Customizable multi-span configurations
• System capacity of 2 workers per span, with a maximum of 6 workers on multi-span systems provides added jobsite flexibility
• Equipped with i-Safe®: Integrated RFID identification tag for recording and storing information on inspections and tracking safety equipment
• Extremely rugged galvanized and zinc plated steel construction provides corrosion resistance for longer service life
• Exclusive Zorbit™ energy absorbers limit fall arrest forces on the worker to safe levels, minimizes fall clearance needed and protects the structure
• Modular design and individual components allow you to completely customize your system any way you want it for ultimate jobsite versatility

Includes

• (3) intermediate brackets
• Tensioner
• Mounting Hardware
• Zorbit™ energy absorbers

Specifications

• OSHA 1910. 66
• OSHA 1926. 502

Caution

• This product is part of a fall protection system
• Users must read and follow the manufacturer's instructions for each component of the system
• These instructions must be provided to the users of this equipment
• The users must read and understand these instructions before using this equipment
• Manufacturer's instructions must be followed for proper use and maintenance of this product
• Alterations or misuse of this product, or failure to follow instructions, may result in serious injury or death
