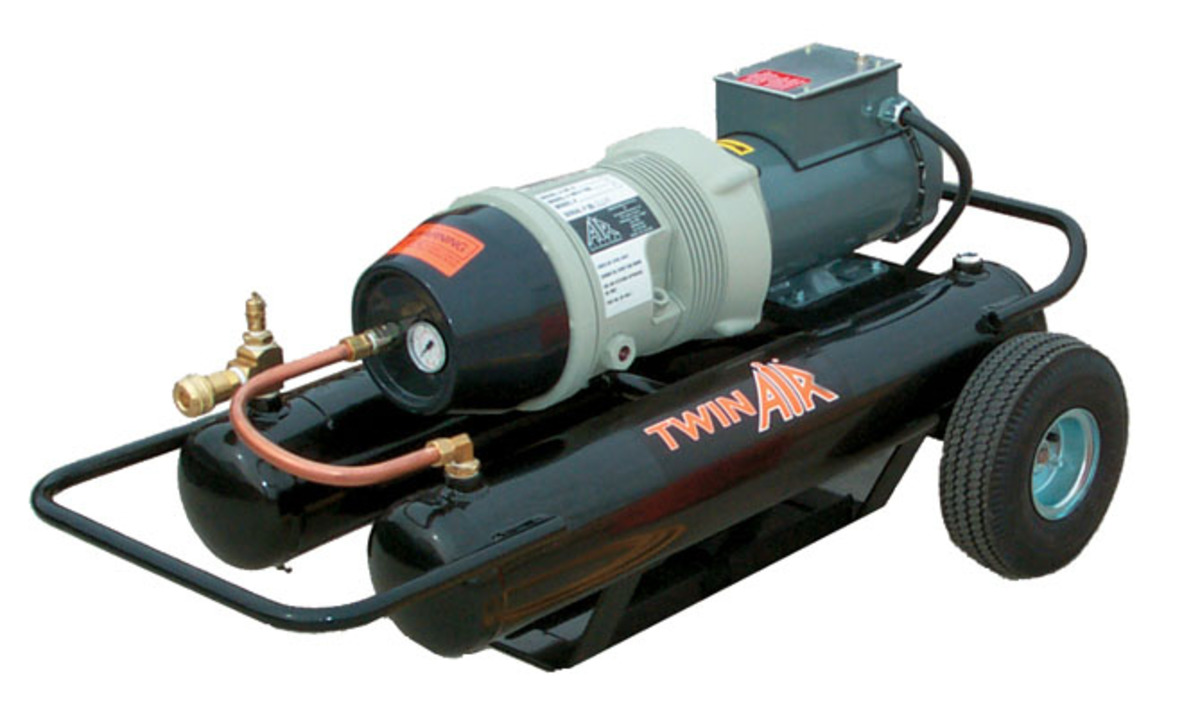

Air Systems International 46 X 24 X 22 TwinAir Compressor

Item Details

• Air Systems International TA-3 compressor designed to operate up to 3 pressure demand airline respirators. Grade-D filtration must be provided in the form of a 3 worker Breather Box®. The TA-3 uses 115/230 VAC, 1 phase, 2 HP, 20 amp electrical supply. USDA food grade oil is used in the compressor air end. The compressor has twin ASME receiver tanks which provide air cooled to within 10 degrees of the ambient temperature.

Features

• Rotary vane air compressor
• Pressure range to 110 psi output
• 2 HP electric motor
• 1750 rpm continuous duty
• thermally protected
• Low maintenance - 500 hours between oil changes
• 10” pneumatic tires
• 50,000 hour minimum vane life
• Built-in skid plate for stair climbing
• USDA approved food grade oil in compression end
• Automatic pressure unloading - full modulation air control
• Noise level below 70 dBA at 3 feet
• ASME coded 8 gallon Twin-Air™ tank assembly, 8.5 cf air storage @ 110 psi
• ½” 5000 series Hansen style coupling outlet

Specifications

• OSHA

Caution

• Always locate compressor in a fresh air environment away from toxic dusts, vapors, and fumes
