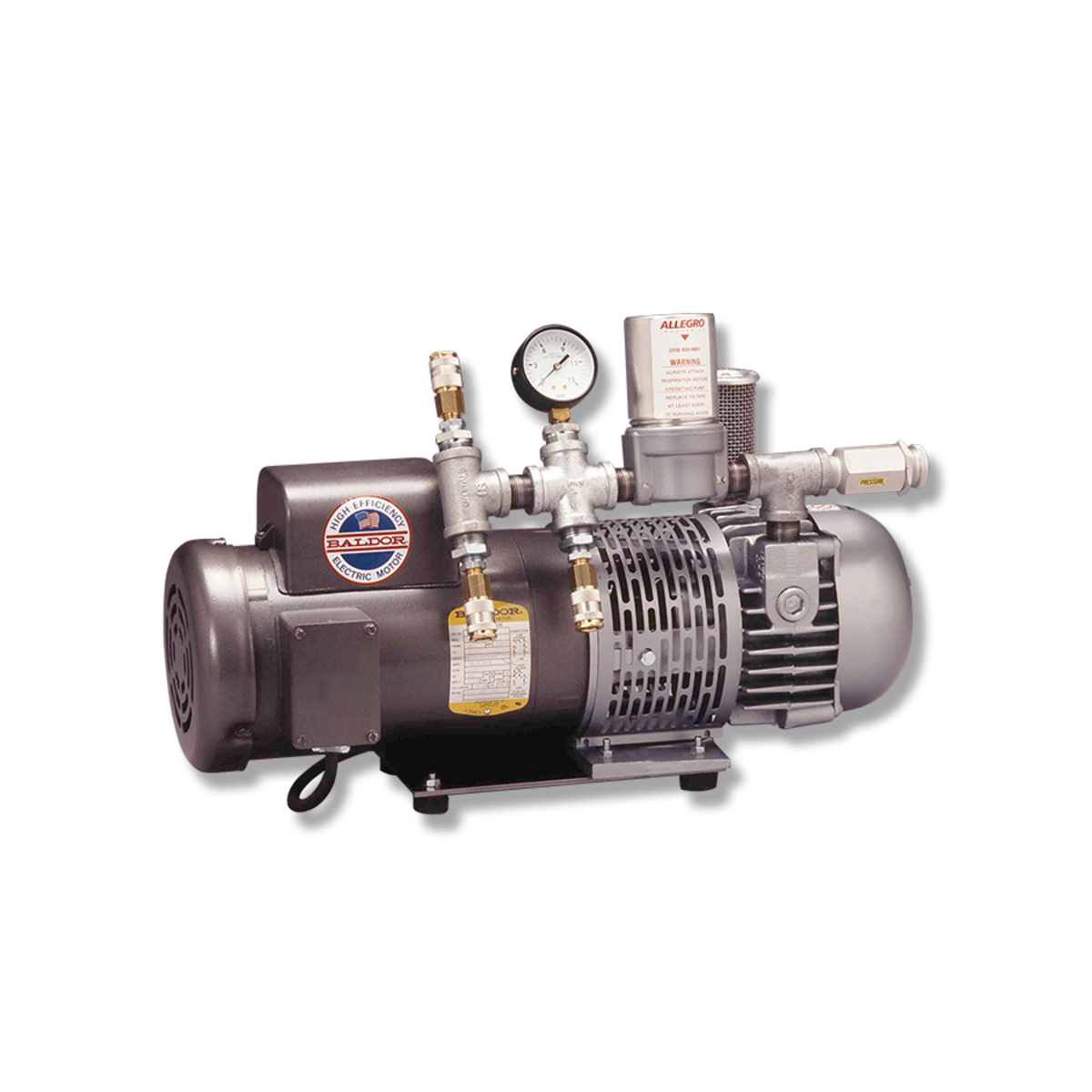

Allegro Industries A1500 EX Ambient Air Pump

Item Details

• Allegro® Industries A-1500EX The easiest way to meet your needs for portable air sources for up to three respirator users or two hood users. Available in explosion proof configurations for special applications. Applicable for chemical handling and clean-up. For up to three respirators or two hoods.

Features

• CONSTRUCTION: Rigid metal base And housing with four rubber feet
• Brass And galvanized steel pluming
• Quick-connect Rectus (OBAC) air fittings
• PUMP: Type: Oil-less, rotary vane, direct driven
• Vanes: Carbon construction (4ea/replaceable) (3.5” (8.89cm) X 1.3” (3.40cm) X 0.188” (.47cm))
• Inlet Filter: 50 micron felt material
• Exhaust Filter: 0.3 Micron HEPA
• Working Pressure: 2-12 psi (.14-.83 bar) (15 psi (1.03 bar) max)
• Performance: 0-15 CFM (0-25.48 m3/hr) at 60 Hz (adjusted via pressure relief valve)
• MOTOR: Type: 1 1/2 HP, XPFC continuous duty
• Certifications: UL Listed, CSA CertifiedVolts: 115V/230 VAC, Single Phase, 60 Hz
• Current Draw: 16A @ 115V (8A @ 230V)
• RPM: 1725

Specifications

• UL Listed
• CSA Certified
