Allegro Industries CarryAir 60 CFM Filtration Panel

Item Details

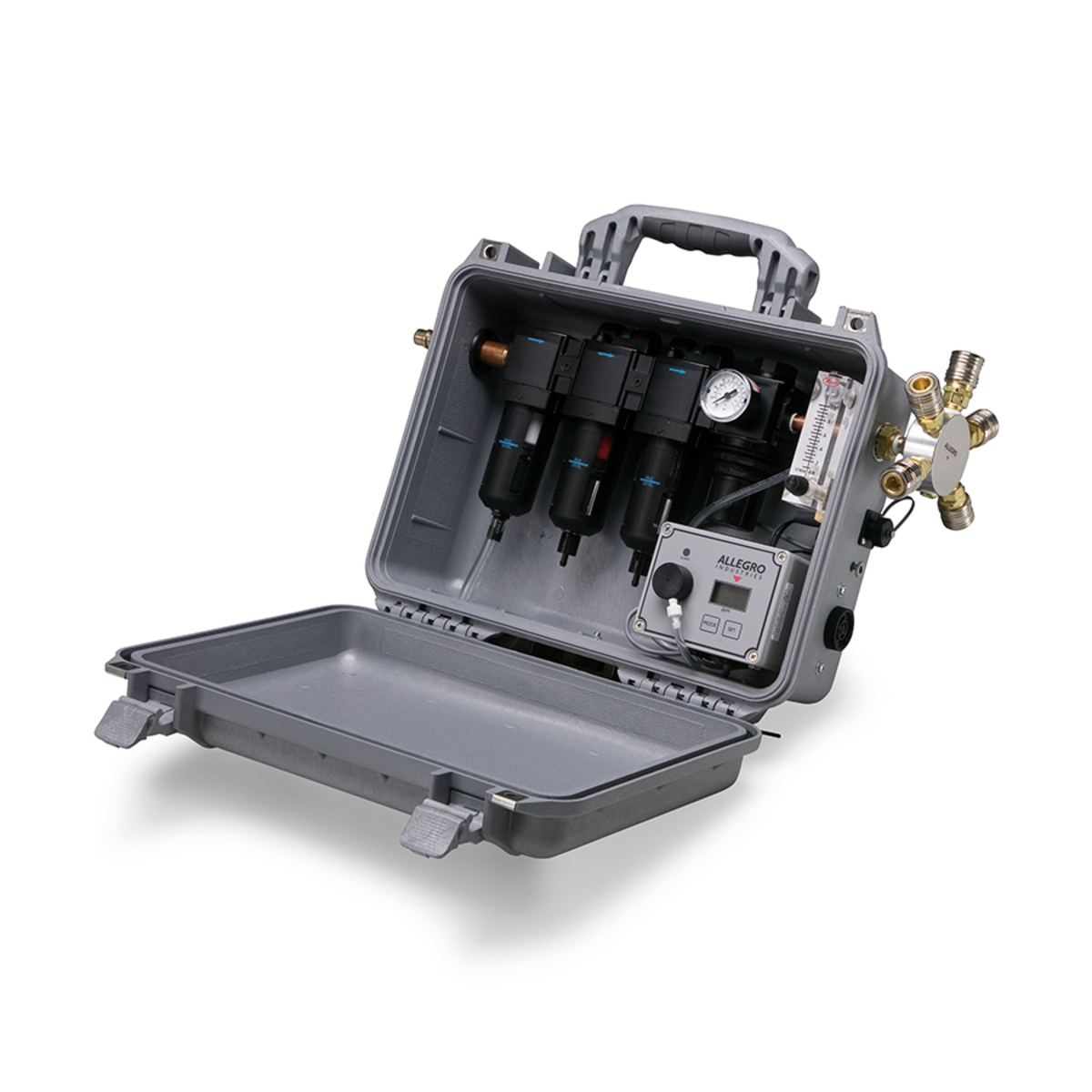

• Allegro® Industries Carry-Air™ 5 Worker Filtration Panel can purify compressed air by removing water, oil as well as particulate contaminant and provides 60 CFM of air from 150 psig. Air panel includes a pressure gauge as well as adjustment knob with locking ring and is ideal for airline respirator. It can be used for pneumatic tools /equipment to clean breathable air. It has a carbon monoxide monitor that can be operated in AC or DC mode and activates an audible alarm when the concentration of CO exceeds 10 ppm. It meets NIOSH requirement.

Features

• CONSTRUCTION: Housed in a portable, rugged Pelican case with carrying
• handle with latches for protection and security
• A 16 gauge, black powder coated steel stand for support
• All brass plumbing with quick-disconnect Hansen couplers
• CO MONITOR: Power source: 115V AC to 9V DC power Adapter for continuous power supply 9V DC Alkaline battery (primary or as back-up for AC Adapter)
• Alarm Setting: 10 PPM (Canada: 5PPM)
• External Connections: Optional Remote Strobe Light Alarm
• Audible: 90 decibel Piezo Alarm
• Calibration: Self adjusting calibration to 20 PPM CO
• FILTRATION SYSTEM: First Stage: 5 micron particulate filter element and automatic mechanical drain
• Second Stage: 0.0 10 micron coalescing filter element and manual drain
• Third Stage: 0.003 micron activated carbon filter element and manual drain.
• Regulator: High Pressure, 0-160 (0-11.03 bar) pressure gauge and an external relief valve
• Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM

Specifications
